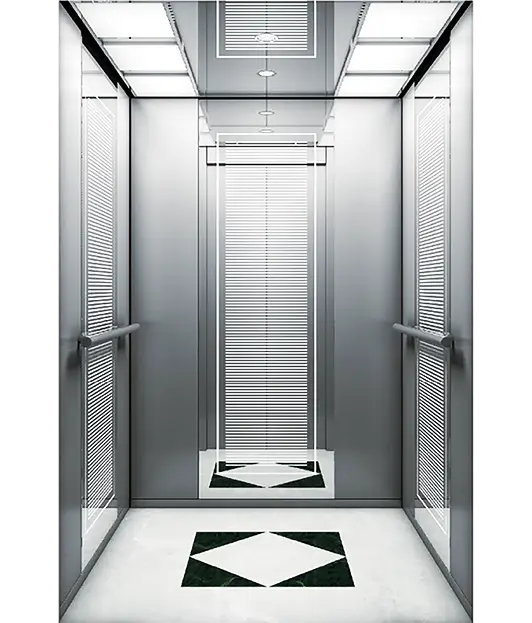

High-Rise Building Passenger Elevators

Model: HE-P08

Specifications:

Ceiling: Mirror stainless steel, acrylic transparent board, LED lights
Cabin Wall: Mirror etched stainless steel for center plate, auxiliary hairline stainless steel
Handrail: Stainless steel single round tube
Floor: PVC, Marble (Optional)

Catalog

Send Inquiry

Product Details

High-Rise Building Passenger Elevators

Specifications:

Passenger elevators are available in various weight capacity configurations to meet the needs of different buildings. Common capacities range from 320 kg (4 persons) to 2000 kg (26 persons). The speed of the elevator varies with the building type. In low-rise buildings, speeds of 0.63 to 1.0 meters per second are sufficient. However, in high-rise buildings, elevators may travel at speeds exceeding 3.0 meters per second to reduce wait and travel times.

Passenger elevator features

Parameter	Standard Specification
Capacity	450–1,600 kg (6–21 persons)
Speed	1.0–7.0 m/s (Low: ≤1.75 m/s, Mid: 2–3.5 m/s, High: 4–7 m/s)
Door Material	Hairline-finished stainless steel
Cabin Walls	1.2–1.5 mm 304 stainless steel
Cabin Flooring	Slip-resistant PVC or Marble (optional)
Control System	Microprocessor-based (Collective/Destination Dispatch)
Drive System	AC VVVF (Traction) or Hydraulic (low-rise)
Safety Systems	Fire-rated doors, seismic detection, over speed governor, door sensors
Emergency Backup	Battery-powered operation (EPS)
Accessibility	ADA-compliant features (braille buttons, handrails)
Special Options	Access control, multimedia displays
