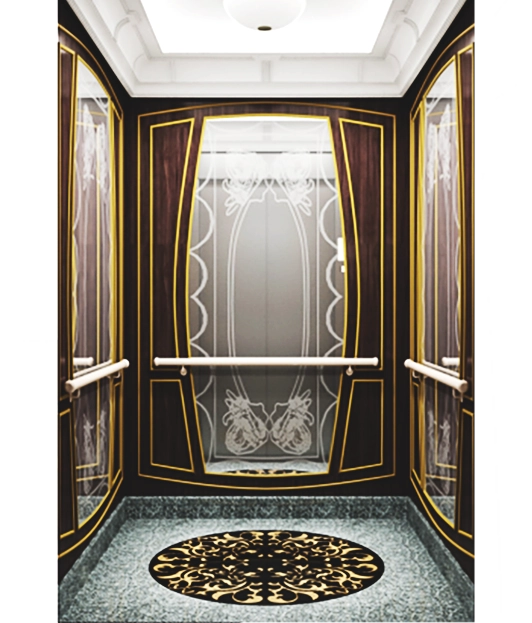

Wooden Decorative Framed Passenger Elevator

Wooden Decorative Framed Passenger Elevator

Specifications:

Ceiling: Wooden decorative frame with hidden lighting & ceiling lights
Cabin Wall:  side wall and rear wall are mirror etched stainless steel with wood veneer on both sides, mirror etched stainless steel
Handrail: Hairline stainless steel tube handrail
Floor: PVC(Standard), Marble(Optional)

The modern passenger elevator is the central nervous system of any multi-story structure, providing indispensable vertical transportation in residential buildings, bustling commercial buildings, and iconic high-rise buildings. These sophisticated systems are engineered to safely and efficiently transport people, seamlessly connecting floors and enhancing accessibility. The ElevaPro Prime series embodies this innovation, merging unparalleled safety with intelligent efficiency to meet the rigorous demands of diverse architectural landscapes.

Anatomy of Excellence: Core Elevator Components

A passenger elevator is a symphony of precision-engineered parts working in harmony. Key elevator components include:

• The Elevator Car: The passenger cabin, available in a myriad of finishes from stainless steel and glass to handcrafted wood and premium laminates. It is designed for comfort, safety, and aesthetic appeal.

• Traction Drive System: The heart of the system. The ElevaPro Prime utilizes permanent magnet synchronous motors (PMSM) with regenerative drives. This technology not only provides a remarkably smooth ride but also captures energy during descent, drastically reducing net energy consumption.

• Control System: The brain of the operation. A sophisticated, microprocessor-based controller manages every aspect—from precise floor leveling and door operation to advanced traffic management algorithms that minimize wait times.

• Guide Rails & Safety Gear: These components ensure the elevator car travels smoothly and safely along its path. Overspeed governors and electromagnetic brakes form a redundant safety system that is fail-safe.

• Doors & Operators: High-speed, quiet doors with infrared safety sensors ensure efficient passenger flow and prevent obstructions.

Layout Drawings:
