3-level vertical Hydraulic parking system

Product Details

3-level vertical Hydraulic parking system

Revolutionize Space with the AutoStack Pro 4-Post Hydraulic Triple Parking System

The 4-Post Automatic Hydraulic Garage Storage Lift is a cutting-edge vertical transportation solution for residential buildings, commercial buildings, and high-rise buildings battling parking shortages. This triple-stacker system uses industrial elevator components and AI-driven automation to store three vehicles vertically in a single footprint—slashing space requirements by 70%. Designed to transport cars safely between levels, its robust hydraulic 4-post structure ensures unmatched stability for SUVs, EVs, and fleet vehicles.

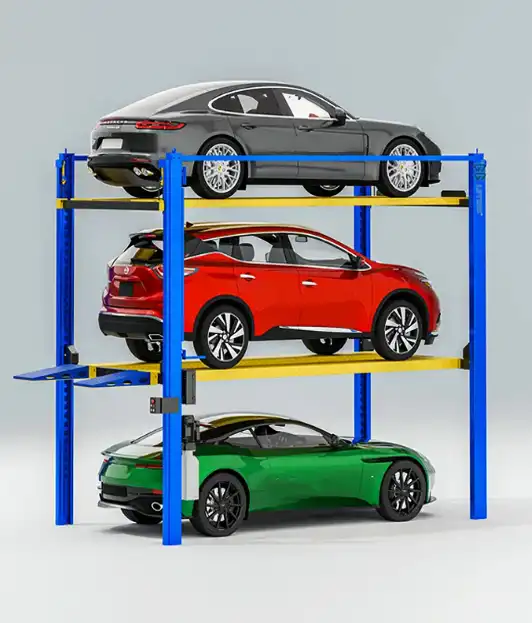

How the 3-Level System Works

Drive-On: Park on the ground-level platform (acts as an elevator car).
Auto-Stacking:
- Level 1: Hydraulic pistons lift the first vehicle to upper bays.
- Level 2/3: Secondary platforms extend and lock for sequential stacking.
Retrieval: AI retrieves any car in <120 seconds via app/QR code.

Key Technical Specifications

Feature	Specification	Benefit
Weight Capacity	8,000 kg (17,600 lbs) per platform	Supports heavy EVs/trucks
Lift Height	5.4m (17.7ft) max	Triple-tier stacking
Energy Consumption	2.8 kW/cycle (regenerative hydraulics)	35% less energy vs competitors
Platform Size	5.8m x 2.5m (19ft x 8.2ft)	Fits full-size pickups
Safety Systems	IoT obstacle sensors, anti-tilt locks, emergency descent	Prevents accidents during vertical transport

Applications

Residential Buildings: Urban apartments/condos with limited garage space.
High-Rise Buildings: Basement or podium-level parking optimization.
Commercial Buildings: Dealerships, rental fleets, and shopping malls.

Engineering Advantages

Triple Vertical Stacking: Stores 3 cars in 1 ground slot (3.6m x 6m footprint).
Smart Automation:
- License plate recognition for auto-slot allocation.
- Predictive maintenance alerts for hydraulic components.
Durability: Marine-grade steel columns withstand humidity/salt corrosion.
EV Integration: 11kW charging ports on all platforms.

Model Spotlight: AutoStack Pro-3

Automation Level: Fully autonomous (no attendants needed).
Speed: 45 seconds/platform movement.
Unique Features:
- Solar-compatible power system.
- Retractable ramps for low-clearance vehicles.
- Cloud-based usage analytics.

Sustainability & ROI

Energy Consumption: 50% lower than mechanical stackers.
Space Savings: Replaces 3 surface slots with 1 vertical stack.
ROI: 2–3 years via increased property value/rental revenue.

Q/A: Elevator Industry Insights

Q1: How does vertical transportation in a 3-level stacker differ from standard lifts? +

A1: Unlike single-level lifts, triple-stackers use synchronized elevator components (hydraulic cylinders, guide rails) to move platforms independently. Safety interlocks prevent movement if a vehicle exceeds weight capacity.

Q2: Can this handle electric vehicles in high-rise buildings? +

A2: Absolutely. The 8-ton weight capacity supports Hummer EVs (4,100 kg). Platforms include shock-resistant charging docks for safe vertical transportation.

Q3: What’s the installation depth for residential buildings? +

A3: Requires 20cm (8") concrete slab—no excavation. For softer soil, micro-pile foundations reinforce load points.

Q4: How does automation reduce energy consumption? +

A4: AI optimizes platform routes (minimizing empty movements). Regenerative hydraulics capture 30% of descent energy. Sleep modes cut idle power to 0.1kW.

Q5: Can commercial buildings retrofit this into existing garages? +

A5: Yes, but ceiling height must exceed 6m (19.7ft). Columns bolt to existing slabs, and smart controls integrate with building management systems.
