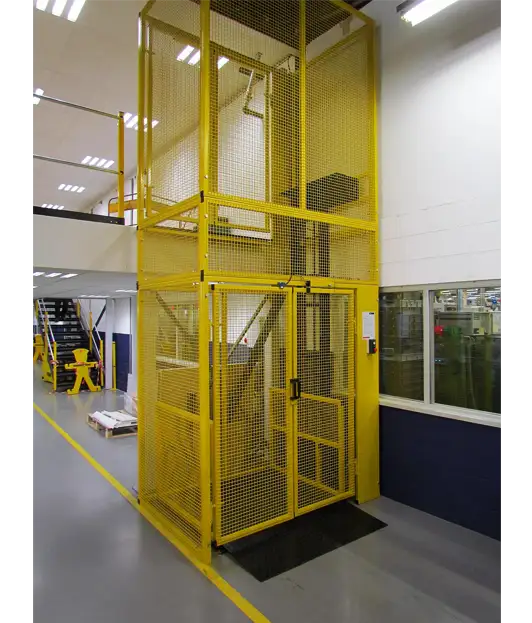

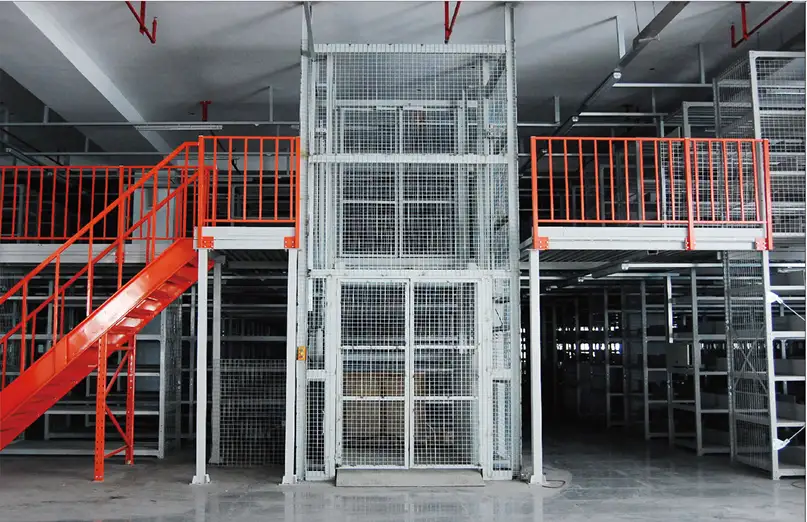

Heavy-Duty Warehouse Cargo Lift
Specifications:
| Type |
Hydraulic |
| Load Capacity |
1000-6000 kg |
| Speed |
0.2 m/s |
| Usage |
Construction Hoist |
| Sling Type |
Wire Rope |
| Lift Drive |
Electric Motor |
| Lift Mechanism |
Lift Chain |
Industrial-Grade Vertical Transport for Warehouse Logistics
The Hydraulic Warehouse Freight Elevator is engineered for heavy-duty cargo movement in demanding distribution centers, manufacturing plants, and cold storage facilities. Unlike passenger elevators, this robust system prioritizes weight capacity, energy efficiency, and durability – transporting pallets, machinery, and bulk goods up to 12 meters vertically with uncompromising reliability.
Key Specifications & Features
-
Massive Load Capacity: 5,000–6,000 kg weight capacity (adjustable) for stacked pallets, industrial equipment, or containerized goods.
-
Hydraulic Drive System: Energy-efficient pumps consume power only during ascent (up to 30% less energy than traction elevators).
-
Industrial Construction:
-
3mm steel cab lining with bumper guards
-
1,200kg bi-parting metal doors
-
Oil-resistant polyurethane seals (-40°C to +80°C)
-
Safety Compliance: Meets ASME B20.1, EN 81-20, and ISO 9384 standards with overload sensors, emergency stop, and pit buffers.
Critical Warehouse Applications
-
Multi-Story Distribution: Transport goods from loading docks to upper-floor storage without forklifts.
-
Automated Logistics: Integrates with conveyor systems for seamless dock-to-rack workflows.
-
Heavy Machinery Handling: Move presses, generators, or assembly lines between production levels.
-
Cold Chain Compliance: Rated for freezer warehouses (-30°C) with anti-condensation heaters.
Advantages Over Alternatives
| Feature |
Hydraulic Freight Elevator |
Scissor Lift Table |
| Max Capacity |
6,000 kg |
3,500 kg |
| Travel Height |
12 m |
10 m |
| Installation Space |
Requires shaft/pit |
Floor-mounted |
| Energy Consumption |
30% less than traction elevators |
25% less than elevators |
| Ideal For |
Permanent high-volume transport |
Flexible temporary use |
Smart Warehouse Integration
-
IoT Sensors: Real-time monitoring of load weight, door cycles, and hydraulic pressure.
-
Custom Configurations:
-
4-point leveling for uneven docks
-
Fire-rated doors (up to 90 minutes)
-
Dual control stations (cab + landing)
-
Maintenance: Sealed hydraulic system reduces fluid leaks; <2 hours/month servicing.
Q/A: Hydraulic Freight Elevators in Warehouses
Q1: Why choose hydraulic over traction for freight elevators?
A1: Hydraulic systems offer higher weight capacity (up to 20,000kg), lower installation costs, and minimal machine room space. They use energy only during ascent – ideal for intermittent warehouse use.
Q2: How does weight capacity impact warehouse design?
*A2: High-capacity elevators (6,000kg+) consolidate freight movement, reducing the need for multiple lifts. This saves 15–20% of floor space versus smaller elevators.*
Q3: What’s the energy consumption comparison?
*A3: Hydraulic freight elevators use 25–30% less energy than electric traction elevators. No counterweight = no constant brake charging. Regenerative drives can recover 15% descent energy.*
Q4: Can these elevators handle pallet jacks?
A4: Yes! Specify reinforced floors (5mm diamond plate) and flush thresholds. Minimum cab depth: 2.5m for EURO pallet jacks.
Q5: Are hydraulic elevators safe for flammable environments?
*A5: Use fire-resistant HFDU fluid (auto-ignition >400°C) and explosion-proof controls. Complies with ATEX Directive for hazardous zones.*
Upgrade Your Warehouse Vertical Transport – Request a Custom Hydraulic Freight Elevator Quote!
