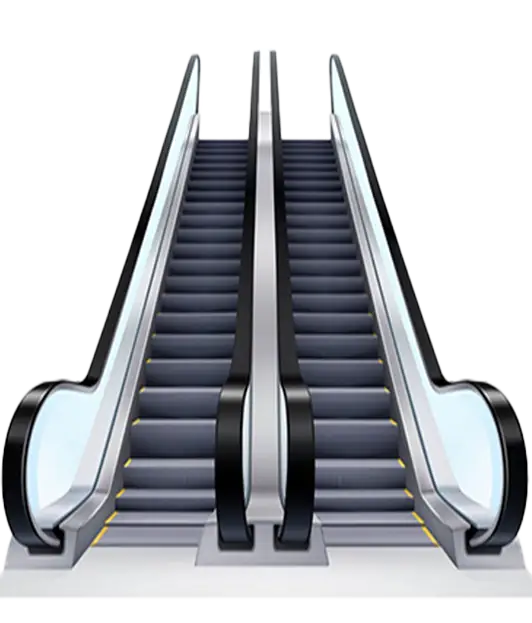

HAYASHIMU Commercial Escalators

Model: HE-E01

Parameter Specification
Max Vertical Rise 18 m (Standard), 25 m (Custom)
Width 1000 mm (Double Lane)
Speed 0.5 m/s (Standard), 0.75 m/s (High-Flow)
Incline 30° (Standard), 35° (Compact)
Capacity 12,000 pax/hour @ 0.75 m/s
Drive System Regenerative Gearless (IP55-rated)
Energy Use 3.8 kW/12m rise (Avg. load)
Compliance EN 115:2017, ASME A17.1, ADA, ISO 14798



Catalog Send Inquiry

Share this Post

Product Details

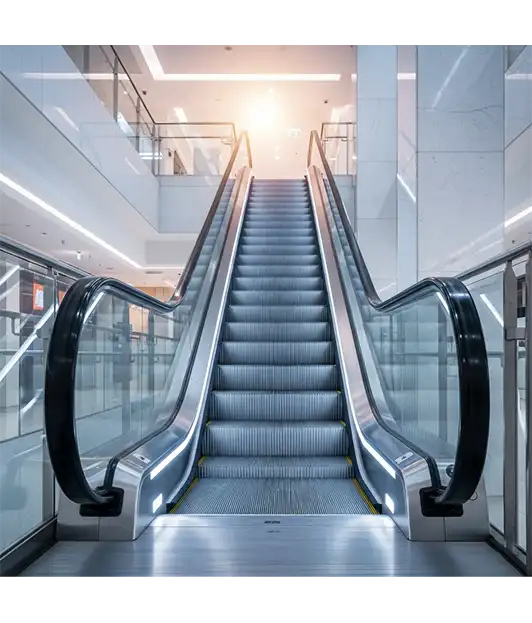

HAYASHIMU Commercial Escalators

Modern escalators are engineered for high-volume vertical transportation, efficiently moving people across levels in commercial buildings, airports, metro stations, and shopping centers. As critical elevator components in urban infrastructure, they reduce congestion while enhancing accessibility in high-rise buildings and public spaces.

Precision Engineering for Mass Transit

  • Unmatched Capacity: Handles 10,000+ passengers/hour with widths of 600 mm (single) or 1,000 mm (double lane)

  • Adaptive Configurations:

    • Standard 30° incline (up to 18 m vertical rise)

    • Compact 35° models for space-constrained sites

    • Curved designs for architectural integration

  • Drive Technology:

    • Gearless Motors: Regenerative VVVF drives cut energy consumption by 40% vs. geared systems

    • Decentralized drives (1 per 12 m rise)

  • Durable Step Systems:

    • Forged steel step chains (200,000+ hour lifespan)

    • Anti-slip rubber/composite treads

    • Zero-insertion combs at entry/exit

  • Safety & Compliance:

    • Skirt brush sensors & emergency stop buttons

    • Handrail speed synchronization (±0.1 m/s)

    • EN 115:2017 / ASME A17.1 certified

Model Spotlight: Atlas Series Heavy-Duty Escalator

Parameter Specification
Max Vertical Rise 18 m (Standard), 25 m (Custom)
Width 1000 mm (Double Lane)
Speed 0.5 m/s (Standard), 0.75 m/s (High-Flow)
Incline 30° (Standard), 35° (Compact)
Capacity 12,000 pax/hour @ 0.75 m/s
Drive System Regenerative Gearless (IP55-rated)
Energy Use 3.8 kW/12m rise (Avg. load)
Compliance EN 115:2017, ASME A17.1, ADA, ISO 14798

Critical Applications

  • Shopping Malls: Connect retail floors in multi-level commercial buildings

  • Airport Terminals: Bridge gates/checkpoints (e.g., Heathrow T5, Incheon Int'l)

  • Metro Systems: High-volume vertical movement in underground stations

  • Stadiums/Arenas: Efficient crowd dispersal

  • Hospital Complexes: Link outpatient wings & parking

  • Corporate Campuses: Connect towers in high-rise buildings

Industrial-Grade Components

  • Cold-drawn steel trusses (20% thicker vs. standard)

  • Sealed step chain rollers (lubrication-free for 5+ years)

  • Fail-safe electromagnetic brakes

  • UV-resistant moving handrails

  • IoT-enabled predictive maintenance sensors

Energy-Smart Operation
• Regenerative drives recover 30% braking energy
• Sleep mode during low-traffic hours
• LED step-edge lighting (0.3W/step)
• Load-adaptive speed control

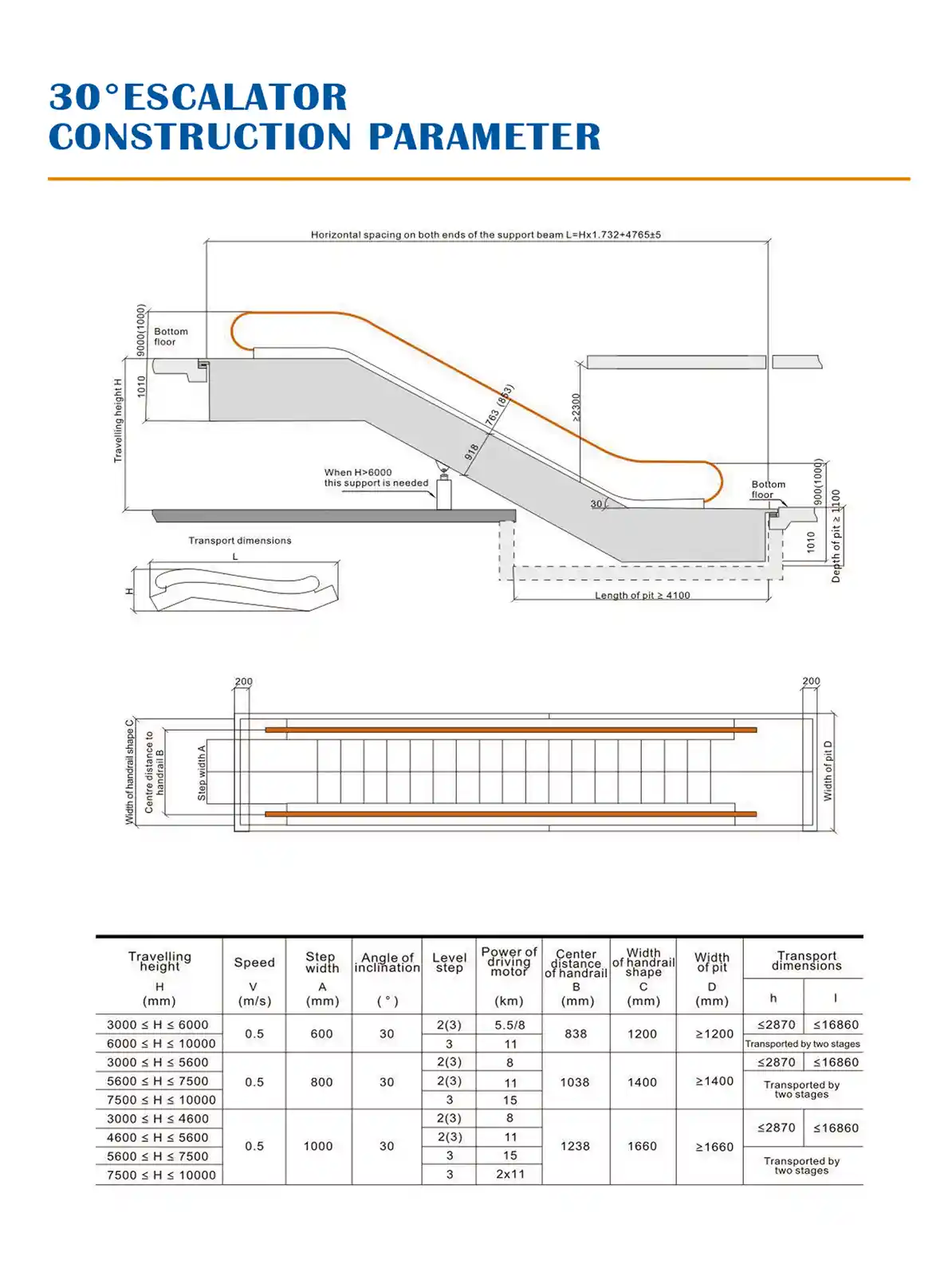

Drawings & Parameters:



Q/A: Elevator Industry Insights

Q: How much does a commercial escalator cost? +
A: $100,000–$500,000+ depending on rise (6m–25m), width, features. Airport-grade systems cost 60% more than retail units. Maintenance: $5,000–$15,000/year.
Q: What’s the lifespan of an escalator? +
A: 25–40 years with proper maintenance. Critical parts: Step chains: Replace every 20 years, Motors: 15–25 years, Truss structure: 40+ years
Q: How much energy do modern escalators use? +
A: 3–5 kW/hour during operation. Gearless regenerative models cut consumption 40% vs. older systems. Sleep modes reduce idle power to 0.8 kW.
Q: Are curved escalators less efficient? +
A: Slightly (15% higher energy use) due to complex drive geometry, but indispensable for architectural integration. Maximum curvature: 30° arc.
Q: Can escalators operate outdoors? +
A: Yes with weatherproofing: Stainless steel components (316L grade), Heated steps for snow/ice climates, Drainage systems & anti-corrosion coatings, Requires EN 115-2 certification.
