Product 1

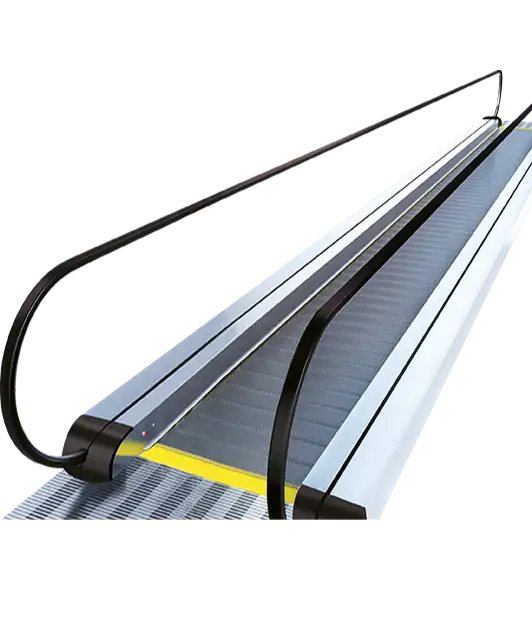

HAYASHIMU Moving Walkway

Model: HE-M01

Parameter Specification
Max Length 120 m (Horizontal), 60 m (Inclined)
Width 1000 mm (Standard), 1400 mm (Wide)
Speed 0.5 m/s (Standard), 0.65 m/s (High-Capacity)
Slope 0° to 12° (Adjustable)
Capacity 9,000 pax/hr (1000mm), 13,000 pax/hr (1400mm)
Drive System Regenerative Gearless Traction (VVVF)
Energy Use 4.8 kW/30m section (Avg. load)
Compliance EN 115-1:2017, ASME A17.1, ADA, CE



Catalog Send Inquiry

Share this Post

Product Details

HAYASHIMU Moving Walkway

Moving walks (travelators, passenger conveyors) accelerate vertical transportation and horizontal movement in high-traffic spaces. These systems efficiently transport people across distances while reducing fatigue – essential in commercial buildings, airports, transit hubs, shopping malls, and large residential buildings like luxury apartments or campuses.

Engineering for Mass Transit Efficiency

  • High-Capacity Design: Handles 9,000+ passengers/hour with widths of 1,000 mm (single) or 1,400 mm (double lane).

  • Configurable Layouts:

    • Horizontal: For terminals/stadiums (up to 100 m length)

    • Inclined: Up to 12° slope for multi-level vertical transportation in high-rise buildings

  • Drive Systems:

    • Gearless Traction: Regenerative VVVF drives cut energy consumption by 35% vs. geared systems

    • Modular 90 kW motors (1 per 30 m section)

  • Advanced Pallet Belts:

    • Interlocking aluminum/composite pallets

    • Anti-slip diamond tread surfaces

    • Zero-gap entry/exit zones

  • Safety & Compliance:

    • Comb-plate sensors & emergency stop buttons

    • Handrail speed synchronization (±0.2 m/s)

    • EN 115 / ASME A17.1 certified

Model Spotlight: MetroFlow Series Moving Walk

Parameter Specification
Max Length 120 m (Horizontal), 60 m (Inclined)
Width 1000 mm (Standard), 1400 mm (Wide)
Speed 0.5 m/s (Standard), 0.65 m/s (High-Capacity)
Slope 0° to 12° (Adjustable)
Capacity 9,000 pax/hr (1000mm), 13,000 pax/hr (1400mm)
Drive System Regenerative Gearless Traction (VVVF)
Energy Use 4.8 kW/30m section (Avg. load)
Compliance EN 115-1:2017, ASME A17.1, ADA, CE

Critical Applications

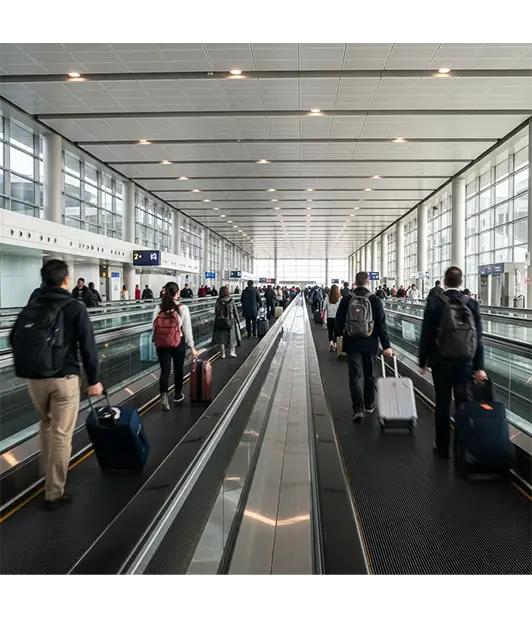

  • Airports/Terminals: Accelerate passenger flow between gates (e.g., Dubai Int'l, Changi T3)

  • Shopping Malls: Connect retail zones across multi-level commercial buildings

  • Metro Stations: Reduce transfer times in underground complexes

  • Hospital Complexes: Transport patients/visitors between wings

  • Convention Centers: Move crowds between exhibit halls

  • Large Residential Buildings: Link towers in luxury complexes

Premium Elevator Components for Reliability

  • Hardened steel trusses (150+ year fatigue life)

  • IP65-rated gearless motors (maintenance-free for 8+ years)

  • Fail-safe electromagnetic brakes

  • UV-resistant rubber handrails

  • Real-time IoT monitoring (vibration, temp, load)

Energy-Smart Vertical Transportation
• Regenerative drives feed 25% braking energy back to grid
• Sleep mode activation during low traffic
• LED step-level lighting (0.5W/linear meter)
• Eco-speed adjustment (±0.1 m/s) based on sensor traffic

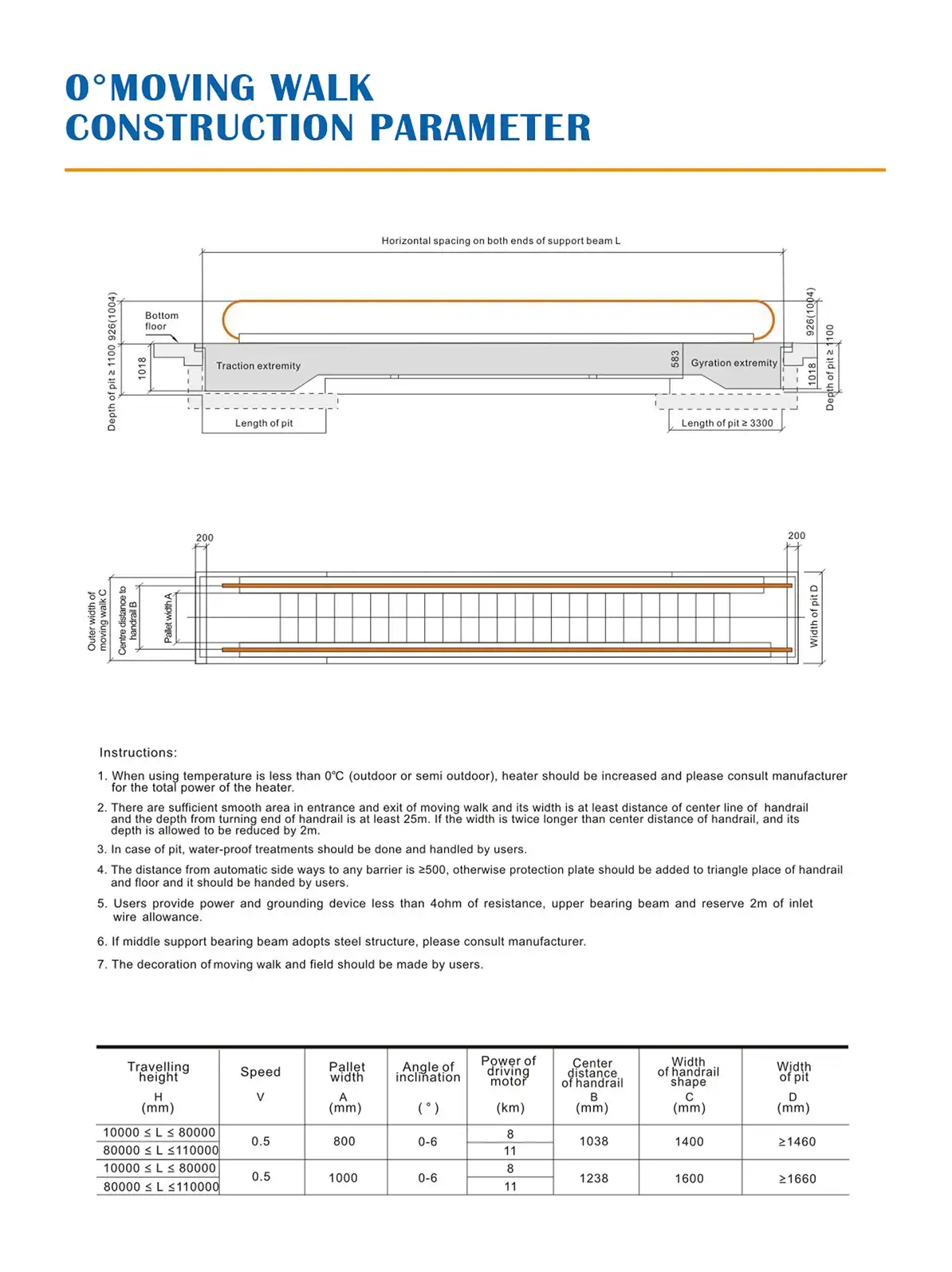

Drawings & Parameters:



Q/A: Elevator Industry Insights

Q: What’s the cost per meter for a moving walkway? +
A: $25,000–$55,000/m depending on width, incline, and specs. Airport-grade systems with pallet belts cost 40% more than retail variants.
Q: Can moving walks operate outdoors? +
A: Yes with weatherproofing: stainless steel components, heated steps (-30°C operation), and drainage systems. Requires EN 115-2 certification.
Q: How steep can an inclined moving walk be? +
A: Maximum 12° slope at 0.5 m/s (per EN 115). For steeper climbs (>12°), use inclined elevators.
Q: Do moving walkways reduce walking time significantly? +
A: Yes. Tests show they cut transit time by 60% on 80m flat paths and 75% on inclined routes vs. stairs.
Q: What maintenance is required? +
A: Monthly safety checks (combs, sensors), quarterly lubrication, annual load testing, and 5-year structural recertification. Mean time between failures: 200,000+ hours.
Q: Are they ADA/Wheelchair accessible? +
A: Required for public installations. Features include: Level entry plates (<6mm gap) 800+ mm handrail height 0.48–0.6 m/s handrail/step sync Emergency call buttons every 15m
